Connector End View - X866M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1897897-03-A

Connector  AMP 4-2310138-4

Color  BO

Connector Location:

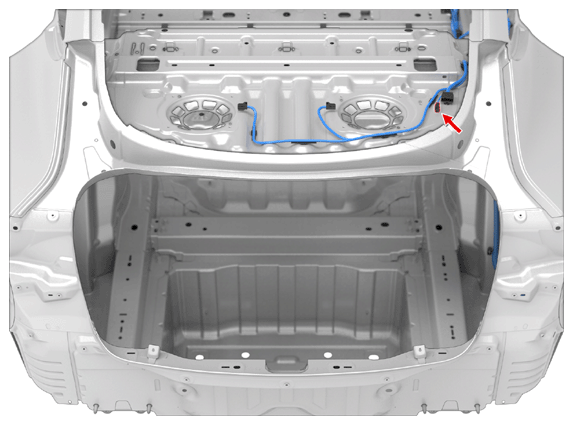

Fig 1: Connector Component Location - X866M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X866M (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.
