Connector End View - X686 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1042592-00-A
Connector SUMITOMO 6098-5704
Color WH

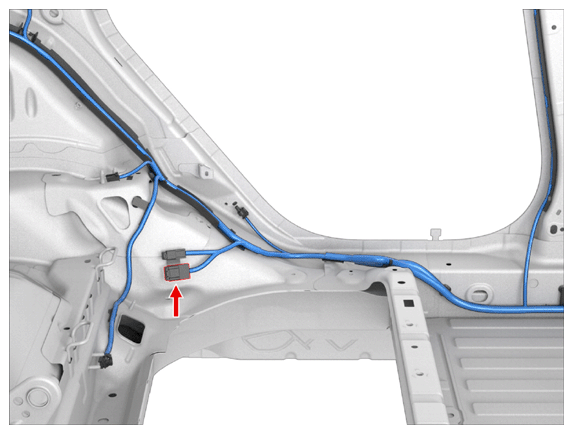

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4925 | 1.5x0.6M | YE | 0.50 | X030A | 31 | ||
| 2 | unused | ||||||||
| 3 | SUMITOMO | 8230-4925 | 1.5x0.6M | VT | 0.50 | X030A | 29 | ||
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | SUMITOMO | 8230-4925 | 1.5x0.6M | WH | 0.35 | X031 | 27 | ||
| 8 | unused | ||||||||
| 9 | SUMITOMO | 8230-4925 | 1.5x0.6M | BU | 0.35 | X031 | 26 | ||
| 10 | SUMITOMO | 8230-4925 | 1.5x0.6M | BN | 0.35 | X039 | 6 | ||
| 11 | unused | ||||||||
| 12 | SUMITOMO | 8230-4923 | 1.5x0.6M | BK | 1.50 | G031 | 9 | ||
