Connector End View - X577 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1075244-00-A

Connector YAZAKI 7283-6444-60

Color GN

Connector Location:

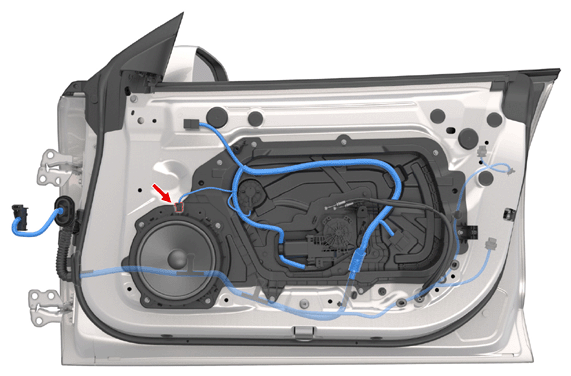

Fig 1: Connector Component Location - X577 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X577 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7116-6316-02	1.5x0.8F	YE	1.00			X053B	2
2	YAZAKI	7116-6316-02	1.5x0.8F	BU	1.00			X053B	1
