Connector End View - X561 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1015425-00-A
Connector YAZAKI 7283-6467-40
Color GY

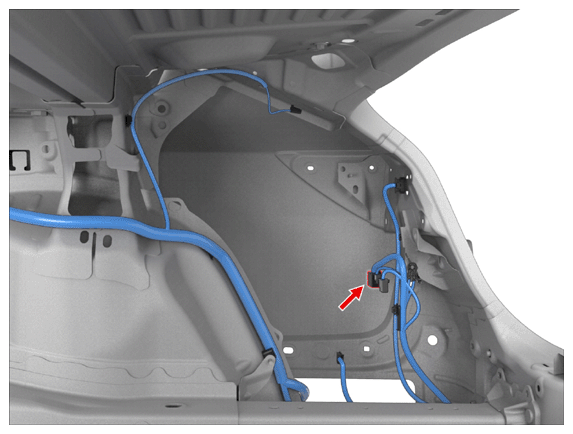

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4272-02 | 2.8x0.8F | BU/WH | 2.00 | X051 | 35 | ||
| 2 | YAZAKI | 7116-4272-02 | 2.8x0.8F | YE/WH | 2.00 | X051 | 19 | ||
| 3 | YAZAKI | 7116-4271-02 | 2.8x0.8F | RD | 1.00 | X600 | 2 | ||
| 4 | YAZAKI | 7116-4271-02 | 2.8x0.8F | VT | 1.00 | X601 | 1 | ||
| 5 | YAZAKI | 7116-4113-02 | 2.8x0.8F | BK | 3.00 | G042 | 3 | ||
| 6 | YAZAKI | 7116-4113-02 | 2.8x0.8F | RD | 3.00 | X060 | 1 | ||
| 7 | YAZAKI | 7116-4272-02 | 2.8x0.8F | BU | 2.00 | X936M | 14 | ||
| 8 | YAZAKI | 7116-4272-02 | 2.8x0.8F | YE | 2.00 | X936M | 26 | ||
| 9 | YAZAKI | 7116-4271-02 | 2.8x0.8F | GN | 1.00 | X600 | 1 | ||
| 10 | YAZAKI | 7116-4271-02 | 2.8x0.8F | BN | 1.00 | X601 | 2 | ||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
