Connector End View - X525 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1015408-00-B
Connector YAZAKI 7288-3029-10
Color DKGY

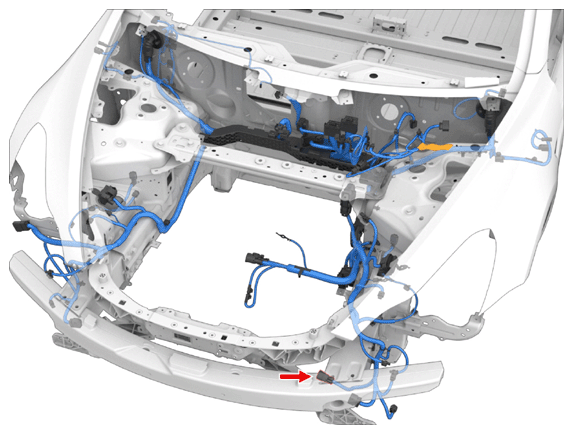

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7114-4143-02 | 6.3x0.8MS | RD | 5.00 | YAZAKI | 7158-3084-40 | X011 | 2 |
| 2 | YAZAKI | 7114-4143-02 | 6.3x0.8MS | YE | 5.00 | YAZAKI | 7158-3084-40 | X011 | 5 |
| 3 | YAZAKI | 7114-4143-02 | 6.3x0.8MS | BU | 5.00 | YAZAKI | 7158-3084-40 | X011 | 1 |
| 4 | YAZAKI | 7114-4140-02 | 6.3x0.8MS | BN | 0.50 | YAZAKI | 7158-3081-50 |
