Connector End View - X501_1 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1768342-00-A

Connector  SUMITOMO 6098-4013

Color  NA

Connector Location:

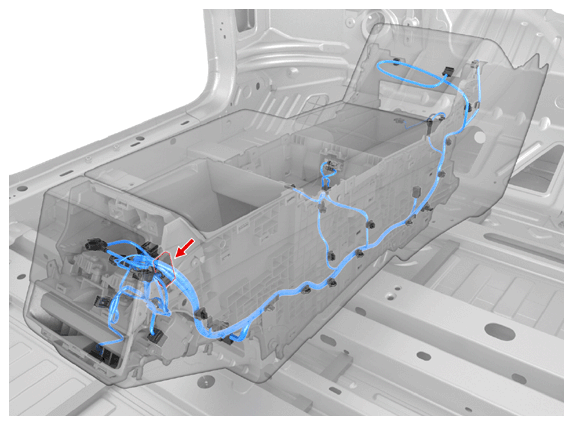

Fig 1: Connector Component Location - X501_1 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610976Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X501_1 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610977Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X524 3
2 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X195_1 1
3 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X195_1 2
4 SUMITOMO 8100-3625 0.64x0.64F WH 0.35     X195_1 3
5 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X195_1 4
6 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X195_1 6
7 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X195_1 5
8 SUMITOMO 8100-3625 0.64x0.64F WH 0.35     X195_1 10
9 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X195_1 9
10 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X195_1 8
11 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X195_1 7
12 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X195_1 11
13 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X195_1 12
14 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X524 7
15 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X524 4
16 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X524 5
17 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X522 3
18 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X522 7
19 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X522 4
20 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X522 5
21 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X528 3
22 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X528 7
23 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X528 4
24 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X528 5
25 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X526 3
26 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X526 7
27 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X526 4
28 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X526 5
29 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X524 6
30 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X522 6
31 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X528 6
32 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X526 6
