Connector End View - X483 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1096355-00-A

Connector MOLEX 347910021

Color GY

Connector Location:

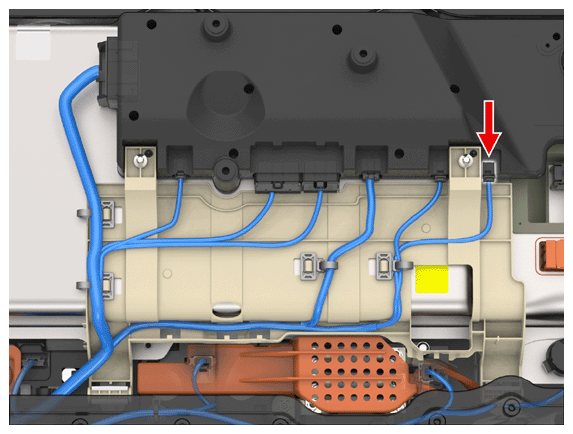

Fig 1: Connector Component Location - X483 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X483 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	560023-0444	0.50x0.4F	GN	0.13			X472	1
2	MOLEX	560023-0444	0.50x0.4F	WH	0.13			X472	2
