Connector End View - X475 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1107706-00-A
Connector AMP 174922-7
Color YL

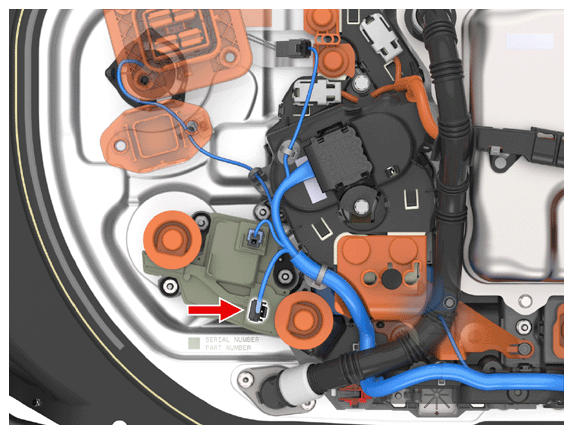

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 173630-1 | 1.8x0.64F | WH | 0.35 | X481 | 7 | ||
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | AMP | 173630-1 | 1.8x0.64F | YE | 0.35 | X481 | 1 | ||
