Connector End View - X433 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1046183-00-A
Connector AMP 1379217-3
Color BK

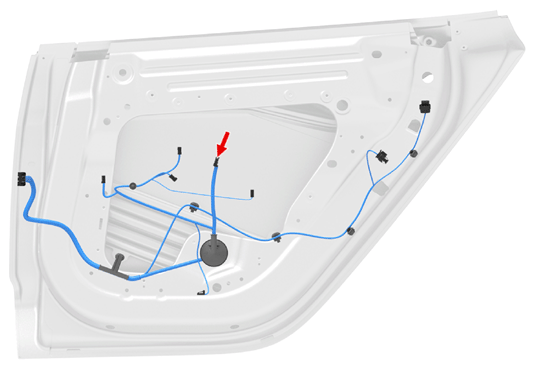

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 968075-2 | 2.8x0.6F | WH | 1.50 | X924M | 1 | ||
| 2 | AMP | 5-928999-1 | 0.63x0.63F | GY | 0.35 | X924M | 5 | ||
| 3 | AMP | 5-928999-1 | 0.63x0.63F | BN | 0.35 | ||||
| 4 | AMP | 5-928999-1 | 0.63x0.63F | WH | 0.35 | X924M | 6 | ||
| 5 | AMP | 968075-2 | 2.8x0.6F | GN | 1.50 | X924M | 15 |
