Connector End View - X421 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1100029-00-A

Connector AMP 1-936119-2

Color YL

Connector Location:

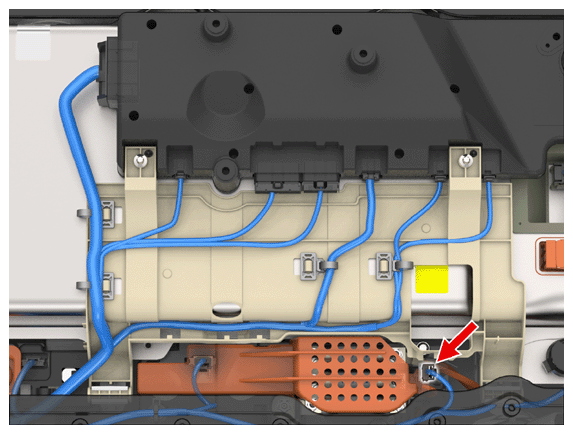

Fig 1: Connector Component Location - X421 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X421 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	AMP	5-928999-1	0.63x0.63F	RD	0.35	X422	3
3	AMP	5-928999-1	0.63x0.63F	WH	0.35	X479	7
4	unused
