Connector End View - X365 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1079896-00-A
Connector AMP 1-1241370-3
Color BK

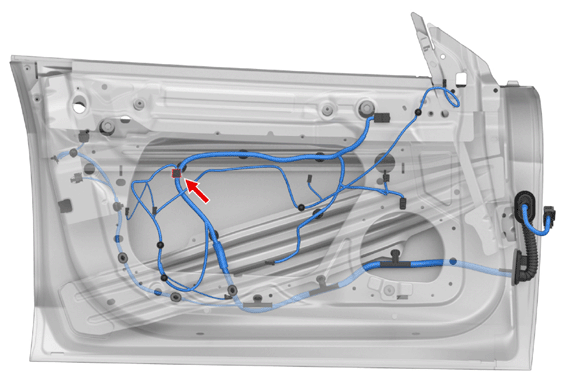

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-928999-1 | 0.63x0.63F | GY | 0.35 | X922F | 7 | ||
| 2 | AMP | 5-928999-1 | 0.63x0.63F | YE | 0.35 | X922F | 16 | ||
| 3 | AMP | 5-928999-1 | 0.63x0.63F | BU | 0.35 | X922F | 15 | ||
| 4 | AMP | 5-928999-1 | 0.63x0.63F | VT | 0.35 | X922F | 17 | ||
| 5 | AMP | 5-928999-1 | 0.63x0.63F | RD | 0.35 | X922F | 8 | ||
| 6 | AMP | 5-928999-1 | 0.63x0.63F | BN | 0.35 |
