Connector End View - X355 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  GDM6STK-L

Connector  SUMITOMO GDM6STK-L

Color  SN

Connector Location:

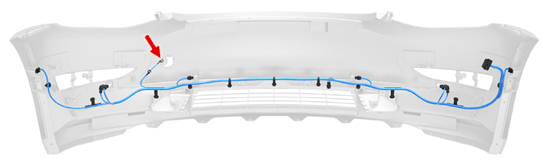

Fig 1: Connector Component Location - X355 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X355 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.
