Connector End View - X340 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1502109-00-A
Connector YAZAKI 7283-6454-40
Color GY

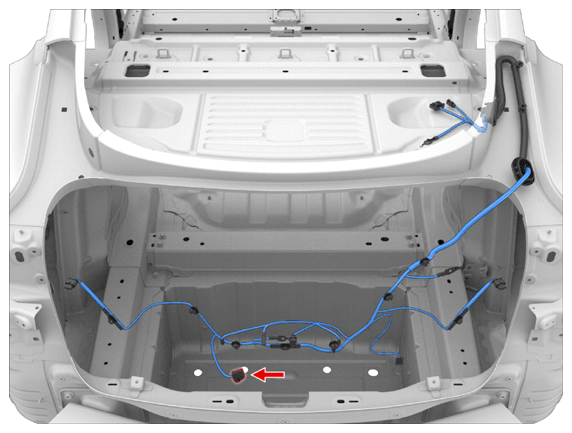

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-6315-02 | WH | 0.35 | X954F | 4 | |||
| 2 | YAZAKI | 7116-6315-02 | VT | 0.35 | X954F | 16 | |||
| 3 | YAZAKI | 7116-6315-02 | BK | 0.50 | G045 | 1 | |||
| 4 | YAZAKI | 7116-6316-02 | 1.5x0.8F | GY | 1.00 | X954F | 20 | ||
| 5 | YAZAKI | 7116-6316-02 | 1.5x0.8F | RD | 1.00 | X954F | 11 | ||
| 6 | YAZAKI | 7116-6315-02 | BU | 0.35 | X954F | 17 |
