Connector End View - X202 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1476295-00-A

Connector HIRSCHMANN 805-120-534

Color BK

Connector Location:

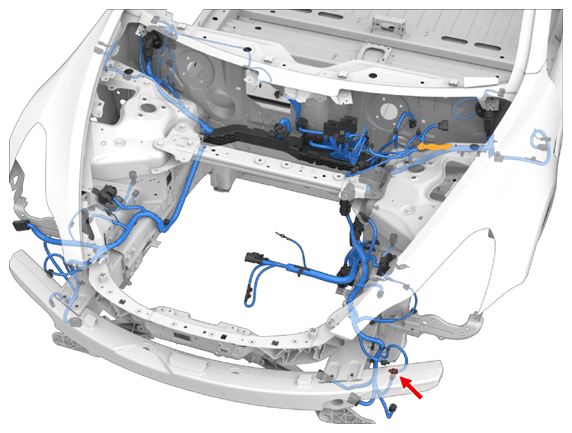

Fig 1: Connector Component Location - X202 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X202 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	13959118	1.2x0.6FS	GN	0.35	DELPHI	13887349	X037	7
2	DELPHI	13959118	1.2x0.6FS	BU	0.35	DELPHI	13887349	X037	8
