Connector End View - X201 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1475379-00-A

Connector  BOSCH 1928406051

Color  BK

Connector Location:

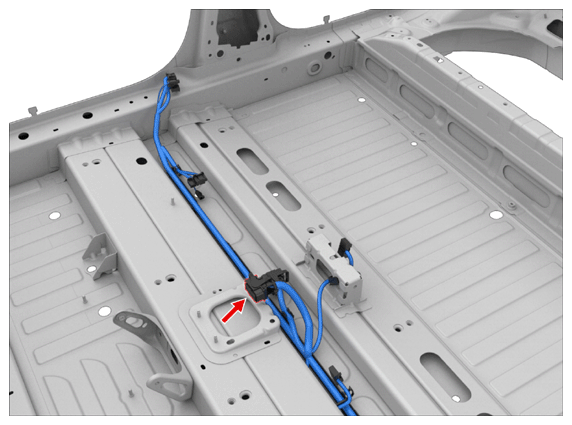

Fig 1: Connector Component Location - X201 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610659Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X201 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610660Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 BOSCH 1928499468 0.50x0.40F GN 0.35 TESLA MAT-110-130 X936F 25
2 BOSCH 1928499468 0.50x0.40F WH 0.35 TESLA MAT-110-130 X936F 24
3 BOSCH 1928499468 0.50x0.40F YE 0.35 TESLA MAT-110-130 X217 2
4 BOSCH 1928499468 0.50x0.40F RD 0.35 TESLA MAT-110-130 X217 1
5 BOSCH 1928499468 0.50x0.40F WH 0.35 TESLA MAT-110-130 X909M 21
6 BOSCH 1928499468 0.50x0.40F YE 0.35 TESLA MAT-110-130 X909M 22
7 BOSCH 1928499468 0.50x0.40F GY 0.35 TESLA MAT-110-130 X909M 11
8 BOSCH 1928499468 0.50x0.40F BU 0.35 TESLA MAT-110-130 X909M 10
9 BOSCH 1928499468 0.50x0.40F WH 0.35 TESLA MAT-110-130 X936F 2
10 BOSCH 1928499468 0.50x0.40F BK 0.35 TESLA MAT-110-130 X936F 3
11 BOSCH 1928499468 0.50x0.40F BU 0.35 TESLA MAT-110-130 X225 2
12 BOSCH 1928499468 0.50x0.40F RD 0.35 TESLA MAT-110-130 X225 1
13 unused
14 unused
15 BOSCH 1928499468 0.50x0.40F TN 0.35 TESLA MAT-110-130 X936F 13
16 BOSCH 1928499468 0.50x0.40F BU 0.35 TESLA MAT-110-130 X936F 12
17 BOSCH 1928499468 0.50x0.40F GN 0.35 TESLA MAT-110-130 X221 1
18 BOSCH 1928499468 0.50x0.40F VT 0.35 TESLA MAT-110-130 X221 2
19 BOSCH 1928499468 0.50x0.40F GY 0.35 TESLA MAT-110-130 X935F 18
20 BOSCH 1928499468 0.50x0.40F WH 0.35 TESLA MAT-110-130 X935F 17
21 BOSCH 1928499468 0.50x0.40F BU 0.35 TESLA MAT-110-130 X219 2
22 BOSCH 1928499468 0.50x0.40F GY 0.35 TESLA MAT-110-130 X219 1
23 unused
24 unused
25 unused
26 unused
27 unused
28 unused
29 unused
30 unused
31 unused
32 unused
33 unused
34 unused
35 unused
36 unused
37 BOSCH 1928499468 0.50x0.40F VT 0.35 TESLA MAT-110-130 X935F 11
38 BOSCH 1928499468 0.50x0.40F BN 0.35 TESLA MAT-110-130 X935F 12
39 BOSCH 1928499468 0.50x0.40F GY 0.35 TESLA MAT-110-130 X206 1
40 BOSCH 1928499468 0.50x0.40F VT 0.35 TESLA MAT-110-130 X206 2
41 BOSCH 1928499468 0.50x0.40F RD 0.35 TESLA MAT-110-130 X936F 17
42 BOSCH 1928499468 0.50x0.40F GN 0.35 TESLA MAT-110-130 X936F 16
43 BOSCH 1928499468 0.50x0.40F VT 0.35 TESLA MAT-110-130 X924F 21
44 BOSCH 1928499468 0.50x0.40F BN 0.35 TESLA MAT-110-130 X924F 20
45 BOSCH 1928499468 0.50x0.40F YE 0.35 TESLA MAT-110-130 X909M 8
46 BOSCH 1928499468 0.50x0.40F TN 0.35 TESLA MAT-110-130 X909M 7
47 unused
48 unused
49 unused
50 unused
51 unused
52 unused
53 BOSCH 1928499468 0.50x0.40F GN 0.35 TESLA MAT-110-130 X030A 3
54 BOSCH 1928499468 0.50x0.40F DKGN/WH 0.35 TESLA MAT-110-130 X030A 4
55 BOSCH 1928499468 0.50x0.40F BK 0.35 TESLA MAT-110-130 G031 13
56 BOSCH 1928499468 0.50x0.40F WH 0.35 TESLA MAT-110-130 X935F 28
57 unused
58 unused
59 unused
60 unused
61 unused
62 BOSCH 1928499468 0.50x0.40F BK 0.35 TESLA MAT-110-130 G031 5
63 unused
64 unused
65 unused
66 unused
67 unused
68 unused
69 unused
70 unused
71 BOSCH 1928499468 0.50x0.40F YE 0.35 TESLA MAT-110-130 X031 45
72 BOSCH 1928499468 0.50x0.40F YE/DKBU 0.35 TESLA MAT-110-130 X031 44
