Connector End View - X197 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1015423-00-A

Connector  YAZAKI 7283-6445-40

Color  GY

Connector Location:

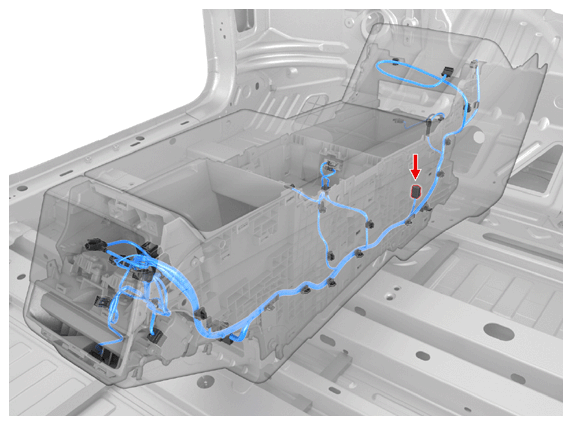

Fig 1: Connector Component Location - X197 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X197 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.
