Connector End View - X190 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1064887-01-A
Connector YAZAKI 7287-1992-40
Color GY

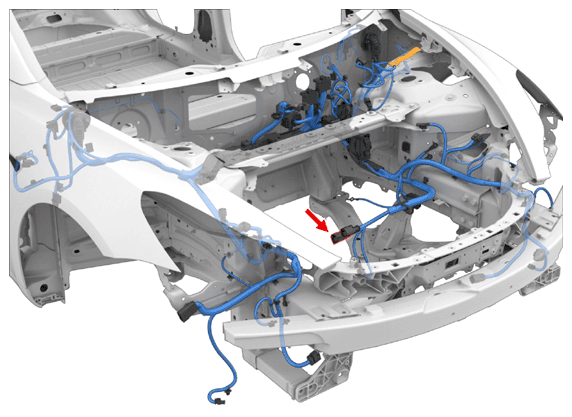

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-5625-06 | 9.5x1.2FS | BU | 13 | YAZAKI | 7158-3713-70 | X014 | 2 |
| 2 | YAZAKI | 7116-5625-06 | 9.5x1.2FS | BK | 13 | YAZAKI | 7158-3713-70 | G099 | 1 |
