Connector End View - X158A (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1118708-00-A
Connector BOSCH 1928405525
Color BK

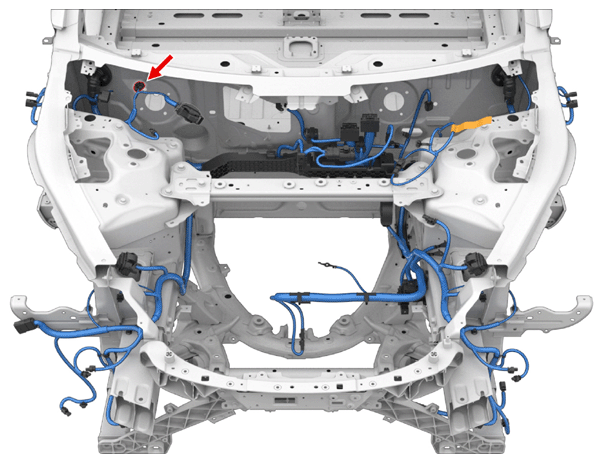

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | BOSCH | 1928498056 | 2.8x0.8FS | WH | 0.50 | BOSCH | 1928300599 | X150A | 22 |
| 2 | BOSCH | 1928498056 | 2.8x0.8FS | RD | 0.50 | BOSCH | 1928300599 | X150A | 2 |
| 3 | BOSCH | 1928498056 | 2.8x0.8FS | BU | 0.50 | BOSCH | 1928300599 | X150A | 23 |
| 4 | BOSCH | 1928498056 | 2.8x0.8FS | BN | 0.50 | BOSCH | 1928300599 | X150A | 8 |
