Connector End View - X151 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1712127-00-A

Connector BOSCH 1928405782

Color BK

Connector Location:

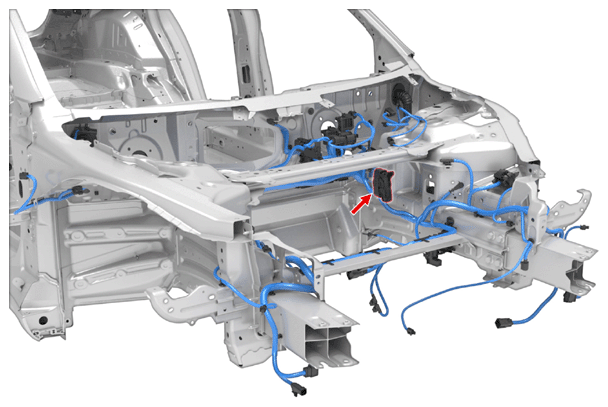

Fig 1: Connector Component Location - X151 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

G16610545

Courtesy of TESLA, INC.

Connector Pinout:

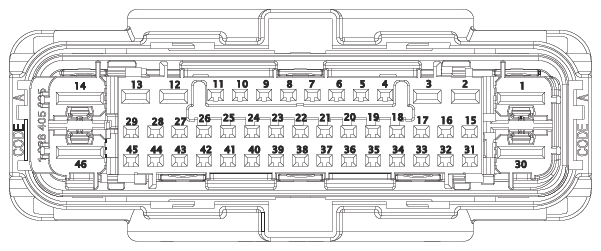

Fig 2: Connector End View - X151 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

G16610546

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928499399	4.8x0.8FS	YE	5	BOSCH	1928301695	X011	7
2	unused
3	unused
4	unused
5	BOSCH	1928499259	1.2	YE/LTBU	0.35	BOSCH	1928300934	X010	14
6	unused
7	BOSCH	1928499259	1.2	WH	0.35	BOSCH	1928300934	X154	2
8	unused
9	unused
10	unused
11	BOSCH	1928499259	1.2	DKGN/WH	0.35	BOSCH	1928300934
12	unused
13	unused
14	BOSCH	1928499399	4.8x0.8FS	BK	5	BOSCH	1928301695	G011	15
15	unused
16	unused
17	unused
18	unused
19	BOSCH	1928499259	1.2	YE	0.35	BOSCH	1928300934	X010	29
20	unused
21	BOSCH	1928499259	1.2	BU	0.35	BOSCH	1928300934	X155A	7
22	BOSCH	1928499259	1.2	WH	0.35	BOSCH	1928300934	X908F	3
23	BOSCH	1928499259	1.2	GN	0.35	BOSCH	1928300934	X908F	17
24	BOSCH	1928499259	1.2	YE	0.35	BOSCH	1928300934	X154A	7
25	BOSCH	1928499259	1.2	GN	0.35	BOSCH	1928300934
26	BOSCH	1928499259	1.2	GY	0.35	BOSCH	1928300934	X155A	8
27	unused
28	unused
29	unused
30	BOSCH	1928492890-01	4.8x0.8FS	WH	2.00	BOSCH	1928301946-01	X010	91
31	unused
32	unused
33	unused
34	unused
35	unused
36	BOSCH	1928499259	1.2	WH	0.35	BOSCH	1928300934	X010	71
37	BOSCH	1928499259	1.2	VT	0.35	BOSCH	1928300934	X908F	4
38	unused
39	BOSCH	1928499259	1.2	TN	0.35	BOSCH	1928300934	X908F	16
40	unused
41	unused
42	unused
43	unused
44	unused
45	unused
46	BOSCH	1928492890-01	4.8x0.8FS	BK	2.00	BOSCH	1928301946-01	G011	13
