Connector End View - X120 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1815599-01-A

Connector SUMITOMO 6099-0401

Color GY

Connector Location:

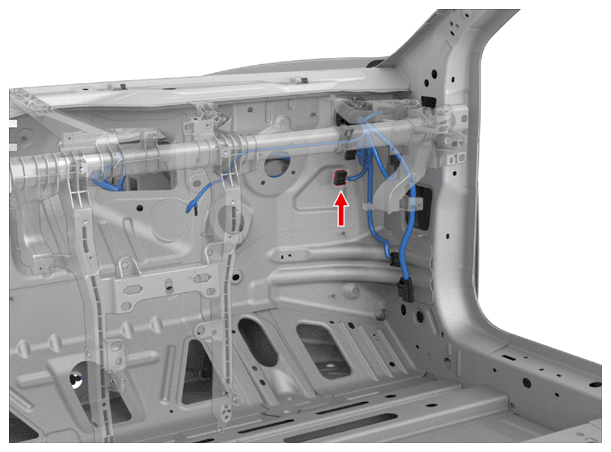

Fig 1: Connector Component Location - X120 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

G16610517

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X120 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

G16610518

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-4932	4.8x0.8F	WH	4.00			X011	6
2	unused
3	SUMITOMO	8100-3636	1.0x0.64F	DKGN/WH	0.35			X037	14
4	SUMITOMO	8100-3636	1.0x0.64F	GN	0.35			X037	15
5	SUMITOMO	8100-3636	1.0x0.64F	VT	0.35			X905F	11
6	SUMITOMO	8100-3636	1.0x0.64F	GY	0.35			X905F	12
7	unused
8	unused
9	unused
10	unused
11	SUMITOMO	8100-3636	1.0x0.64F	GY	0.35			X603	2
12	SUMITOMO	8100-3636	1.0x0.64F	BN/WH	0.35			X057	23
13	SUMITOMO	8100-3636	1.0x0.64F	BN	0.35			X057	22
14	unused
15	unused
16	unused
17	unused
18	unused
19	unused
20	SUMITOMO	8100-3636	1.0x0.64F	RD	0.35			X603	1
