Connector End View - X095 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1496688-00-A

Connector DELPHI 35126369

Color BK

Connector Location:

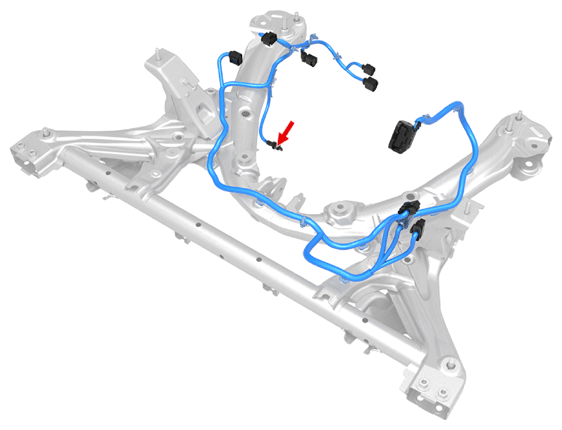

Fig 1: Connector Component Location - X095 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

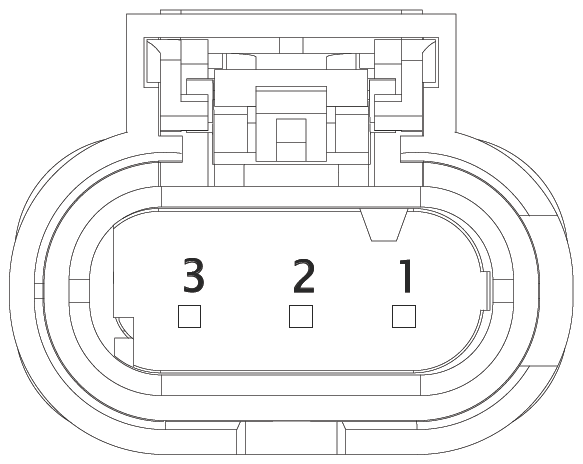

Fig 2: Connector End View - X095 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35555157	1.2x0.6FS	VT	1.00	DELPHI	13887350	X911M	1
2	DELPHI	13959118	1.2x0.6FS	RD	0.35	DELPHI	13887349	X093	10
3	DELPHI	35555157	1.2x0.6FS	BK	1.00	DELPHI	13887350	X911M	9
