Connector End View - X093 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1077101-00-A

Connector SUMITOMO 6189-6987

Color GY

Connector Location:

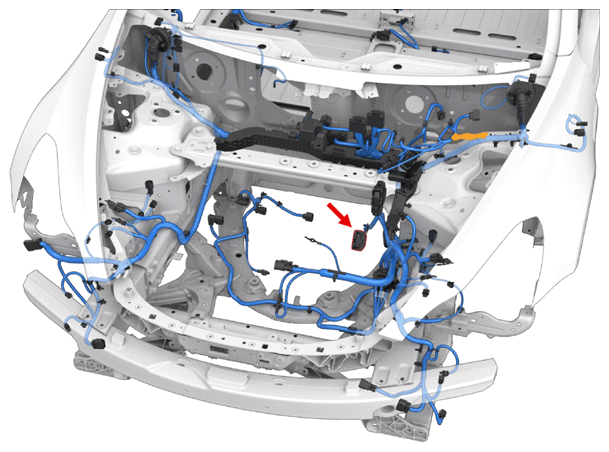

Fig 1: Connector Component Location - X093 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X093 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3456	0.64x0.64FS	GY	0.35	SUMITOMO	7165-1312	X911M	3
3	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X911M	10
4	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X911M	7
5	unused
6	unused
7	SUMITOMO	8240-0337	0.64x0.64FS	RD	0.13	SUMITOMO	7165-1423	X094	9
8	SUMITOMO	8240-0337	0.64x0.64FS	VT	0.13	SUMITOMO	7165-1423	X094	5
9	unused
10	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X095	2
11	unused
12	SUMITOMO	8100-3456	0.64x0.64FS	WH	0.35	SUMITOMO	7165-1312	X911M	2
13	SUMITOMO	8100-3456	0.64x0.64FS	BK	0.35	SUMITOMO	7165-1312	X911M	8
14	unused
15	unused
16	SUMITOMO	8240-0337	0.64x0.64FS	BU	0.13	SUMITOMO	7165-1423	X094	8
17	SUMITOMO	8240-0337	0.64x0.64FS	GN	0.13	SUMITOMO	7165-1423	X094	4
18	unused
19	unused
20	SUMITOMO	8100-3456	0.64x0.64FS	WH	0.35	SUMITOMO	7165-1312	X911M	5
21	unused
22	SUMITOMO	8100-3456	0.64x0.64FS	GY	0.35	SUMITOMO	7165-1312	X911M	11
23	SUMITOMO	8100-3456	0.64x0.64FS	BN	0.35	SUMITOMO	7165-1312	X911M	6
24	unused
25	unused
26	SUMITOMO	8240-0337	0.64x0.64FS	YE	0.13	SUMITOMO	7165-1423	X094	3
27	SUMITOMO	8240-0337	0.64x0.64FS	BN	0.13	SUMITOMO	7165-1423	X094	10
28	unused
29	unused
30	SUMITOMO	8100-3456	0.64x0.64FS	BU	0.35	SUMITOMO	7165-1312	X911M	4
