Connector End View - X091 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1734166-00-A
Connector HIRSCHMANN 807-602-521
Color BK

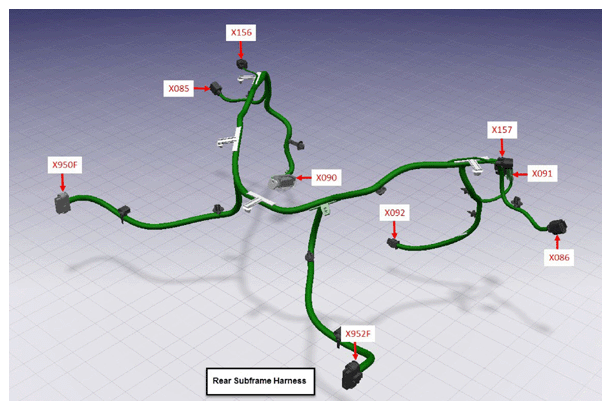

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | unused | ||||||||
| 3 | AMP | 7-1452665-2 | 1.2x0.6FS | YE | 0.35 | AMP | 967067-2 | X090 | 26 |
| 4 | AMP | 7-1452665-2 | 1.2x0.6FS | GN | 0.35 | AMP | 967067-2 | X090 | 17 |
| 5 | AMP | 7-1452665-2 | 1.2x0.6FS | VT | 0.35 | AMP | 967067-2 | X090 | 8 |
| 6 | unused | ||||||||
| 7 | unused | ||||||||
| 8 | AMP | 7-1452665-2 | 1.2x0.6FS | BK | 0.35 | AMP | 967067-2 | X090 | 16 |
| 9 | AMP | 7-1452665-2 | 1.2x0.6FS | RD | 0.35 | AMP | 967067-2 | X090 | 7 |
| 10 | AMP | 7-1452665-2 | 1.2x0.6FS | BU | 0.35 | AMP | 967067-2 | X090 | 27 |
