Connector End View - X060 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
Tesla Part Number 1047151-00-A
Connector SUMITOMO 6098-0325
Color WH

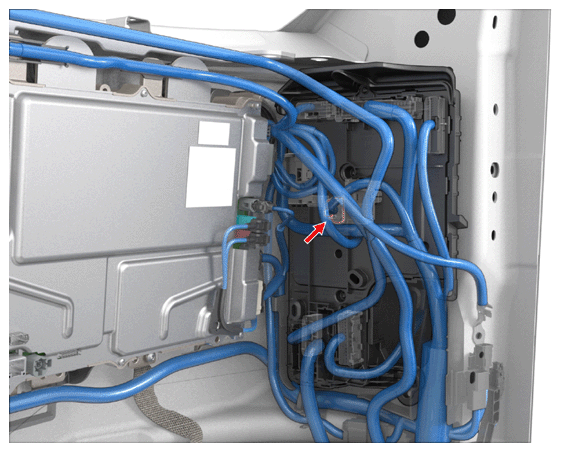

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-4932 | 4.8x0.8F | RD | 3.00 | X561 | 6 | ||
| 2 | SUMITOMO | 8240-4932 | 4.8x0.8F | BU | 3.00 | X309 | 1 |
