Connector End View - X030A (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1506907-02-A

Connector SUMITOMO 6098-8950

Color WH

Connector Location:

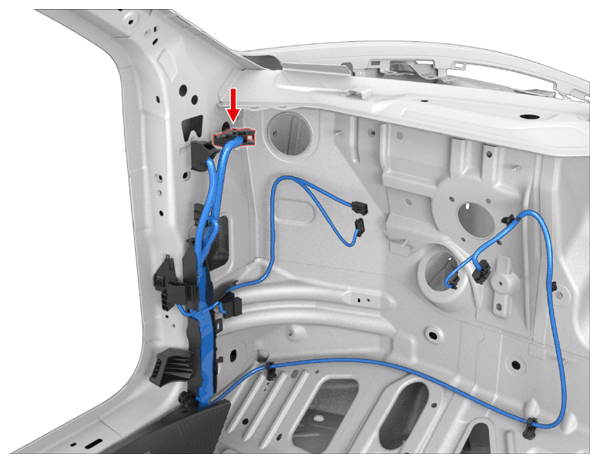

Fig 1: Connector Component Location - X030A (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X030A (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X201	53
4	SUMITOMO	8100-3625	0.64x0.64F	DKGN/WH	0.35	X201	54
5	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X685	3
6	SUMITOMO	8100-3625	0.64x0.64F	YE/GN	0.35	X981M	8
7	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X041	2
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X924F	10
9	unused
10	unused
11	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X924F	2
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X493	2
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X924F	19
14	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35	X924F	3
15	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35	X486	8
16	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X486	7
17	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X924F	5
18	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X924F	6
19	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X935F	9
20	unused
21	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X490	2
22	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X924F	11
23	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X924F	23
24	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X495	4
25	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X497	4
26	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35	X981M	13
27	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35	X935F	13
28	SUMITOMO	8240-0215	1.5x0.64F	TN	0.35	X096	10
29	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50	X686	3
30	unused
31	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50	X686	1
32	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50	X676	2
