Connector End View - G046 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number  1106403-00-B

Connector  DELPHI 35037582

Color  Currently not available

Connector Location:

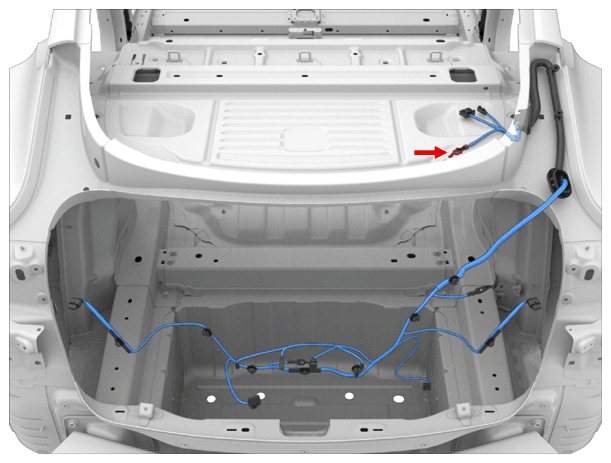

Fig 1: Connector Component Location - G046 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)
G16610417Courtesy of TESLA, INC.

Connector Pinout:  Currently not available
