Connector End View - G001 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Tesla Part Number 1100719-01-C

Connector FDJ 033087

Color SN

Connector Location:

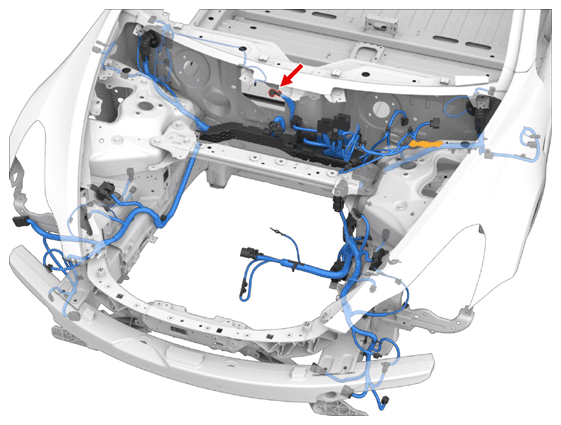

Fig 1: Connector Component Location - G001 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - G001 (Fremont: 01/01/2024 - | Shanghai: 09/01/2023 -)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1				SI	25			X022	2
