Underhood Trim - Rear Apron Assembly - Remove And Replace: Install

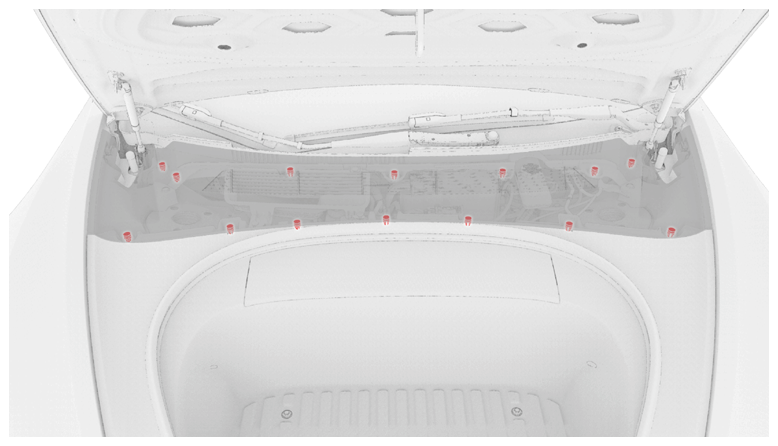

  1. Install the clips (x14) that attach the rear underhood apron to the vehicle, and then install the apron to the vehicle.
    G16588583Courtesy of TESLA, INC.
  2. Close the hood.
  3. If equipped, ensure the first responder loop label is not visible after installing the rear apron.
