Exterior Trim Fittings - LHD - Assembly B-Pillar Applique LH - Remove And Replace: Remove
WARNING:
Whenever a camera has been moved out of its original position (for example, a camera or windshield replacement), camera calibration data must be cleared using the vehicle touchscreen: Controls
> Service
> Camera Calibration
> Clear Calibration
.
- Open the LH doors and lower the LH windows.

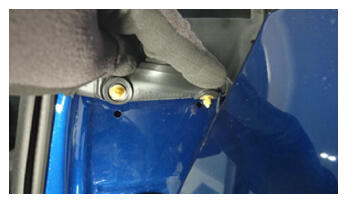

- Release the clips (x2) that attach the LH B-pillar applique seal to the body.

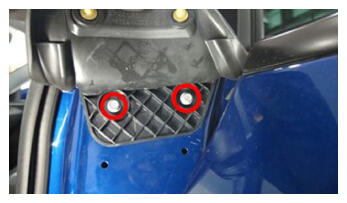

- Remove the bolts (x2) that attach the B-pillar applique to the body, but do not remove the applique from the vehicle at this time.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 8 mm socket
- 2 in extension
- Ratchet/torque wrench

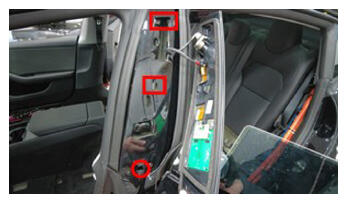

- Release the bottom of the B-pillar applique and slide downward to remove it from the body.CAUTION: Do not pull the applique too far from the vehicle, as the applique is still attached by 2 electrical connectors.

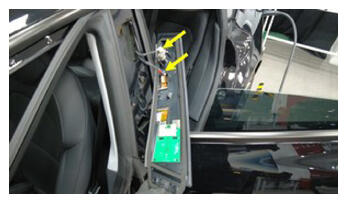

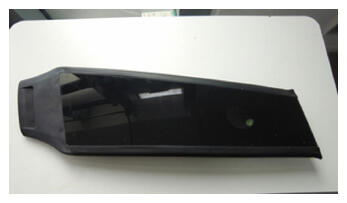

- Disconnect the camera connector and the antenna connector from the B-pillar applique, and then remove the B-pillar applique from the vehicle.
