Badges - Performance Badge - Remove And Replace: Install

  1. Peel the adhesive backing from the dual motor badge, and install the dual motor badge onto the trunk lid.

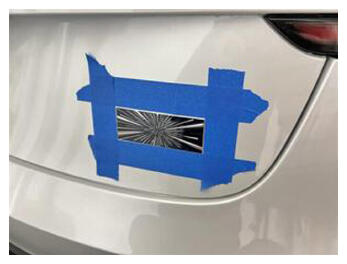

    G16588360Courtesy of TESLA, INC.
  2. Re-apply the adhesive backing to protect the dual motor badge and use a pressure roller to fully adhere the badge to the trunk lid.
    NOTE: Be careful not to damage the dual motor badge during the rolling process.
  3. Remove the adhesive backing from the badge, and then remove the masking tape from the trunk lid.
  4. Use an IPA wipe to clean the badge and any remaining debris.
    NOTE: Make sure that all edges of the badge are securely affixed to the trunk lid surface.
