A - B - C Post Interior Trim - Side Rail Assembly, LH - Remove And Replace: Remove

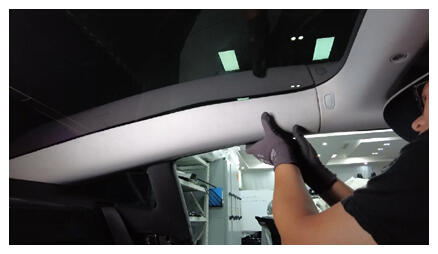

  1. Release the clips that attach the LH side rail trim to the LH side rail.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16590259Courtesy of TESLA, INC.

    Tip: Pull the upper corner of the side rail trim and work towards the bottom.

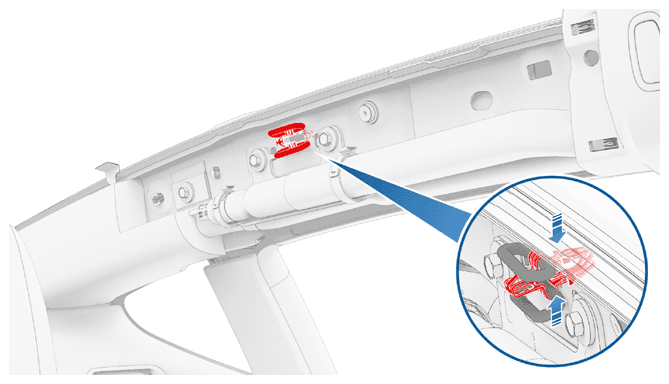

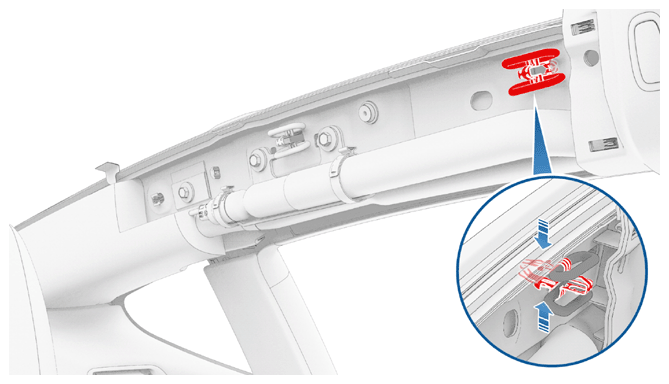

  2. Unhook and discard the tethers (x2) from the vehicle.
    G16590260Courtesy of TESLA, INC.
    G16590261Courtesy of TESLA, INC.
  3. Remove the side rail trim from the vehicle.
