A - B - C Post Interior Trim - A - Pillar Upper Assembly, LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Remove the LH instrument panel end cap. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .

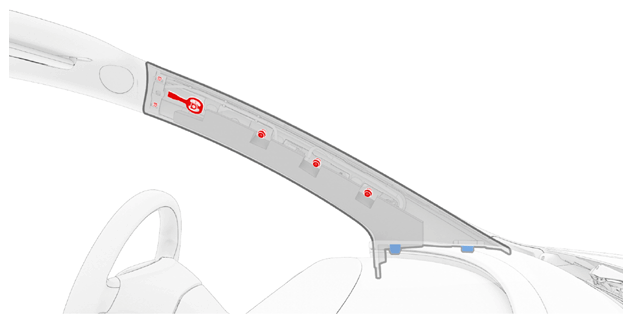

  3. Release the clips (x6) that attach the LH upper A-pillar trim to the A-pillar.
    NOTE: Release the top clip first and work forward and down.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16590206Courtesy of TESLA, INC.
  4. Depress the tabs (x2) that attach the LH upper A-Pillar trim tether to the body, and then remove the tether from the body.
    G16590207Courtesy of TESLA, INC.
  5. Pull upwards to remove the LH upper A-pillar trim from the vehicle.
    NOTE: Remove any remaining LH upper A-pillar trim clips from the LH A-pillar.
    G16590208Courtesy of TESLA, INC.
