A - B - C Post Interior Trim - A - Pillar Upper Assembly, LH - Remove And Replace: Install

Position the LH upper A-pillar trim tether on the body, and then press the tether into the body to engage the tabs (x2).
WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

multimedia:A supplement to the article is available.

Courtesy of TESLA, INC.

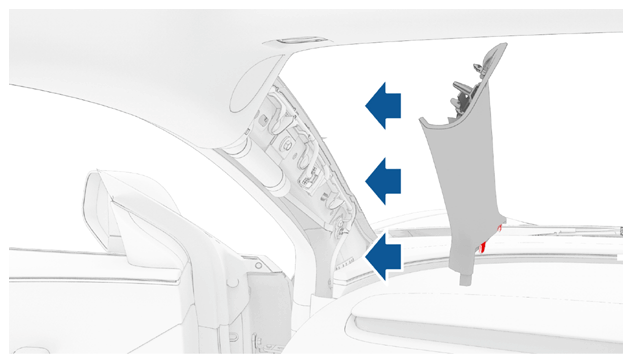

Insert the front lower edge of the trim into the instrument panel carrier, and then firmly fasten the clips that attach the LH upper A-pillar trim to the A-pillar.
NOTE: Fasten the bottom clip first, and then work toward the top.

NOTE: Look through the windshield from outside of the vehicle to check that the LH upper A-pillar trim is flush with the A-pillar.

Courtesy of TESLA, INC.
Pull the primary front side body seal over the LH upper A-pillar trim.
Install the LH instrument panel end cap. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .
Raise the LH front window and close the LH front door.
