A - B - C Post Interior Trim - A - Pillar Lower Assembly, LH - Remove And Replace: Remove
- Open the LH front door.
- Remove the LH instrument panel end cap. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .

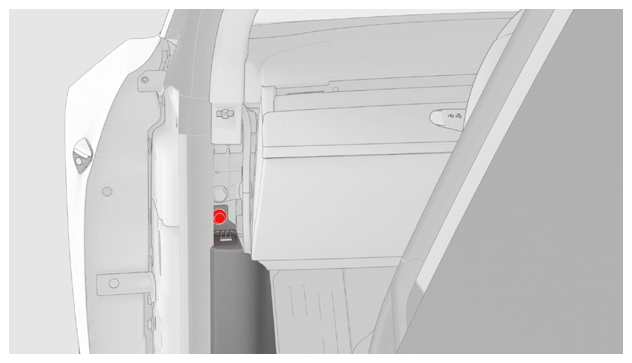

- Release the topmost clip on the LH lower A-pillar trim.

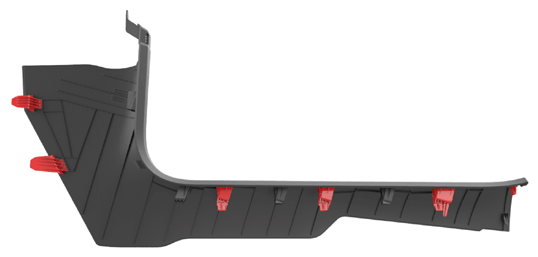

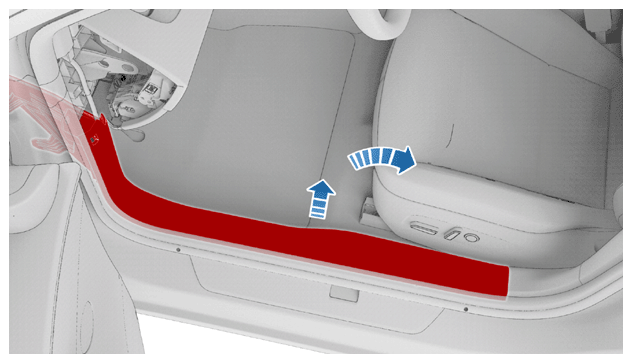

- Pull the rearmost part of the LH lower A-pillar trim upward to release the clips and tabs, and then pull the entire trim rearward to remove the trim from the vehicle.
