Trunk Carpet And Side Finishers - Trunk Side Trim LH - Remove And Replace: Remove

  1. Remove the 2nd row side bolster. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW BOLSTER - LH - REMOVE AND REPLACE .
  2. Remove the trunk load floor. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR ASSEMBLY - REMOVE AND REPLACE .
  3. Remove the trunk sill trim. See A-B-C POST INTERIOR TRIM - TRUNK SILL - REMOVE AND REPLACE .
  4. Remove the LH load floor bracket. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR BRACKET LH - REMOVE AND REPLACE .
  5. Remove the trunk garnish. See TRUNK INTERIOR - TRUNK GARNISH, ASSEMBLY - REMOVE AND REPLACE .

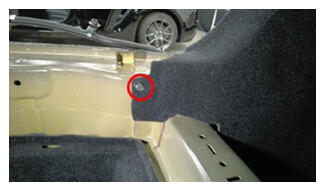

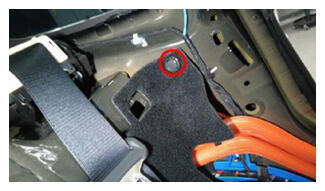

  6. Use a pry tool to remove the clips (x2) that attach the trunk side trim to the vehicle.
    G16590682Courtesy of TESLA, INC.
    G16590683Courtesy of TESLA, INC.

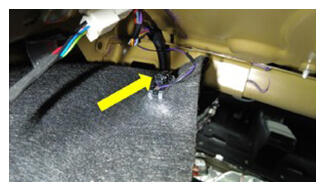

  7. Disconnect the LH trunk task light connector.
    G16590684Courtesy of TESLA, INC.

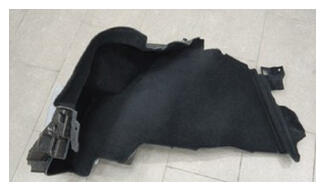

  8. Remove the trunk side trim.
    G16590685Courtesy of TESLA, INC.
