Trunk Carpet And Side Finishers - Trunk Side Trim LH - Remove And Replace: Install
- Install the trunk side trim.

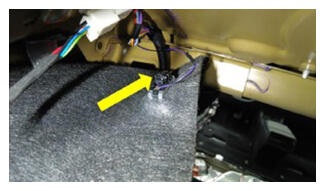

- Connect the LH trunk task light connector.

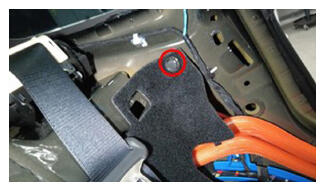

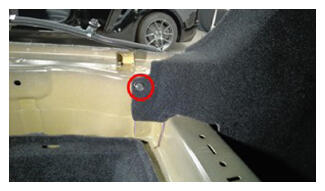

- Install the clips (x2) that attach the trunk side trim to the vehicle.
- Install the trunk garnish. See TRUNK INTERIOR - TRUNK GARNISH, ASSEMBLY - REMOVE AND REPLACE .
- Install the LH load floor bracket. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR BRACKET LH - REMOVE AND REPLACE .
- Install the trunk sill trim. See A-B-C POST INTERIOR TRIM - TRUNK SILL - REMOVE AND REPLACE .
- Install the trunk load floor. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR ASSEMBLY - REMOVE AND REPLACE .
- Install the 2nd row side bolster. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW BOLSTER - LH - REMOVE AND REPLACE .
