Interior Sound Insulation - Wheelhouse Stuffer - Remove And Replace: Install

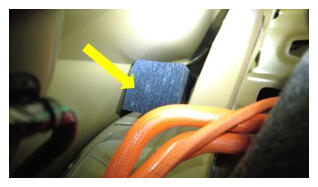

  1. Install the LH trunk tub stuffer.
    G16590626Courtesy of TESLA, INC.

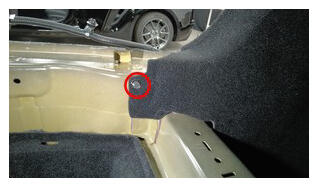

  2. Install the LH clip that attaches the trunk side trim to the vehicle.
    G16590627Courtesy of TESLA, INC.
  3. Install the LH load floor bracket. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR BRACKET LH - REMOVE AND REPLACE .
  4. Install the trunk sill trim. See A-B-C POST INTERIOR TRIM - TRUNK SILL - REMOVE AND REPLACE .
  5. Install the trunk garnish. See TRUNK INTERIOR - TRUNK GARNISH, ASSEMBLY - REMOVE AND REPLACE .
  6. Install the trunk load floor. See TRUNK CARPET AND SIDE FINISHERS - LOAD FLOOR ASSEMBLY - REMOVE AND REPLACE .
