Interior Ducting And Vents - HVAC, Thermistor Duct - Remove And Replace: Install

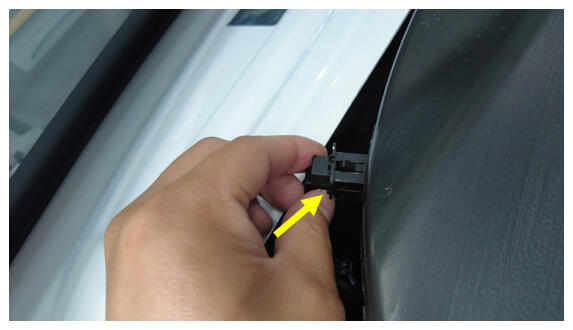

  1. Install the thermistor duct to LH IP air wave duct.
    G16589545Courtesy of TESLA, INC.

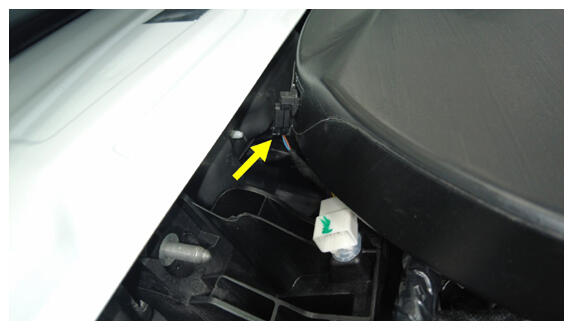

  2. Connect the thermistor connector to LH IP air wave duct.
    G16589546Courtesy of TESLA, INC.
  3. Install the IP carrier. See INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - INSTRUMENT PANEL UPPER ASSEMBLY - REMOVE AND INSTALL .
