ELECTRICAL - Wipers and Washers - Windshield Wipers and Motor - Wiper Blade DR - Remove And Replace: Remove

  1. On the touchscreen, touch Controls > Service > Wiper Service Mode  to enable "Wiper Service Mode".
  2. Place a towel or shop rag underneath the wiper arm to prevent scratches on the windshield.
  3. Release the tab that attaches the LH wiper blade to the LH wiper arm, and then remove the LH wiper blade from the vehicle.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    NOTE: Releasing and Securing the Tab

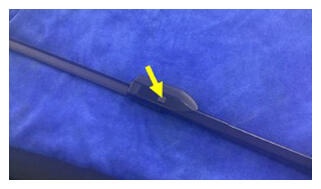

    G16596528Courtesy of TESLA, INC.

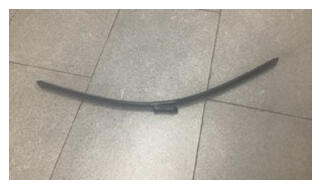

    G16596529Courtesy of TESLA, INC.
