Front Door Hinges And Fittings - Front Check Strap Seal - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.

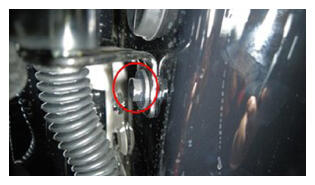

- Remove the bolt that attaches the LH front door check strap to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
- 13 mm socket
- Ratchet/torque wrench

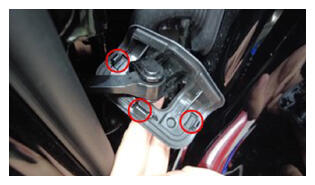

- Release the clips (x3) that attach the check strap seal to the vehicle with a plastic trim tool.

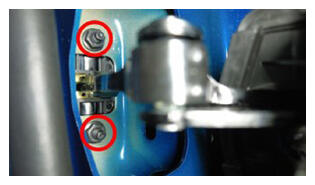

- Remove the nuts (x2) that secure the LH front door check strap to the LH front door assembly.
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- 2 in extension
- Ratchet/torque wrench

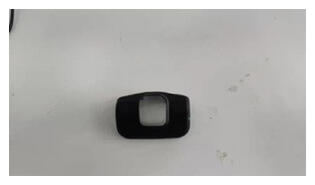

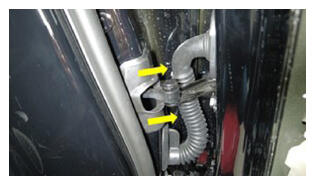

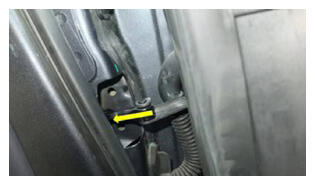

- Move the LH front door check strap inward and remove the LH front door check strap seal.
