Front And Rear Door Glass - Glass, Rear Door LH - Remove And Replace: Remove

Remove the LH rear door puddle light. See INTERIOR TRIM - DOOR TRIM - REAR DOOR TRIM PAD - PUDDLE LAMP - REMOVE AND REPLACE .
Remove the LH rear door trim panel. See INTERIOR TRIM - DOOR TRIM - REAR DOOR TRIM PAD - DOOR TRIM ASSEMBLY - LH - REMOVE AND REPLACE .
Remove the LH rear door inner belt seal. See BODY SIDE SEALS - INNER BELT SEAL, REAR DOOR, LH - REMOVE AND REPLACE .

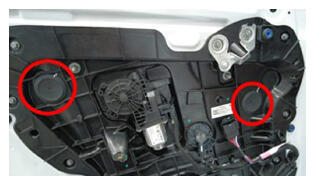

Remove the plugs that cover the openings in door for access to the bolts.

Courtesy of TESLA, INC.

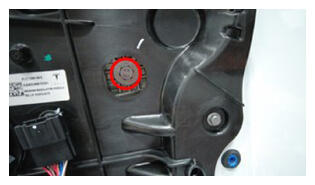

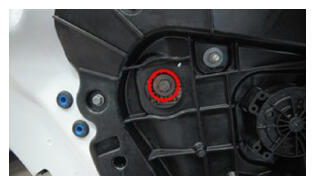

Connect the window switch special tool and raise the door glass so that the regulator isolator clamp bolts are accessible from the holes.

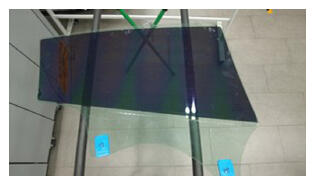

Remove and discard the bolts (x2) that attach the door glass to the regulator isolator clamps, and then remove the door glass from the door.
NOTE: Lift the glass up and then away from the run channel to remove it from the door.

NOTE: Replace the regulator isolator clamps, if damaged.
NOTE:
Use of the following tool(s) is recommended:
- 13 mm socket
- 4 in extension
- Cordless Ratchet/Impact Driver
- Ratchet/torque wrench
WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

multimedia:A supplement to the article is available.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
