Front And Rear Door Glass - Glass, Rear Door LH - Remove And Replace: Install

Inspect the regulator isolator clamps for glass splinters or other debris, and clean them if necessary.
CAUTION: Debris and splinters may damage or shatter the new door glass.
Position the door glass into the LH rear door.

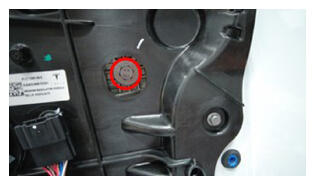

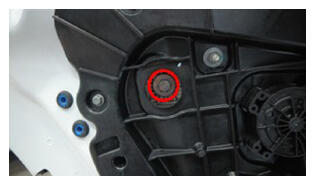

Install new bolts (x2) that attach the door glass to the regulator isolator clamps.
9.5 N.m (7.0 lbs-ft)

NOTE: Lift the glass up and then away from the run channel to remove it from the door.

NOTE: Replace the regulator isolator clamps, if damaged.
NOTE:
Use of the following tool(s) is recommended:
- 13 mm socket
- 4 in extension
- Cordless Ratchet/Impact Driver
- Ratchet/torque wrench
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the LH rear door inner belt seal. See BODY SIDE SEALS - INNER BELT SEAL, REAR DOOR, LH - REMOVE AND REPLACE .
Adjust the door glass. See GLASS - DOOR - LH - REAR (ADJUST) .
Install the LH rear door puddle light. See INTERIOR TRIM - DOOR TRIM - REAR DOOR TRIM PAD - PUDDLE LAMP - REMOVE AND REPLACE .
Install the LH rear door trim panel. See INTERIOR TRIM - DOOR TRIM - REAR DOOR TRIM PAD - DOOR TRIM ASSEMBLY - LH - REMOVE AND REPLACE .
Calibrate the window. See WINDOW REGULATOR (RECALIBRATE) - MODULE RESET/REFLASHED .
