Front Bumper Fascia - Fascia Assembly - Front - Remove And Replace: Install

Position the grille onto the front fascia.

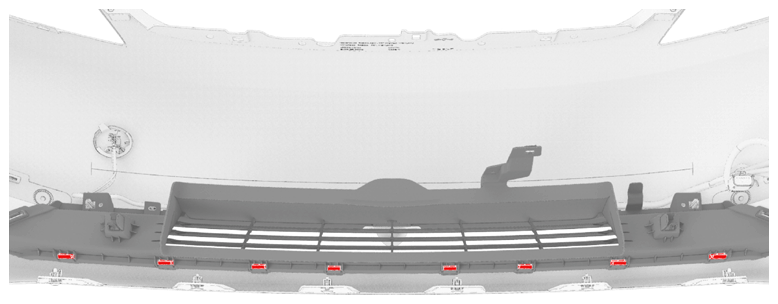

Install the clips (x16) that attach the grille to the front fascia.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

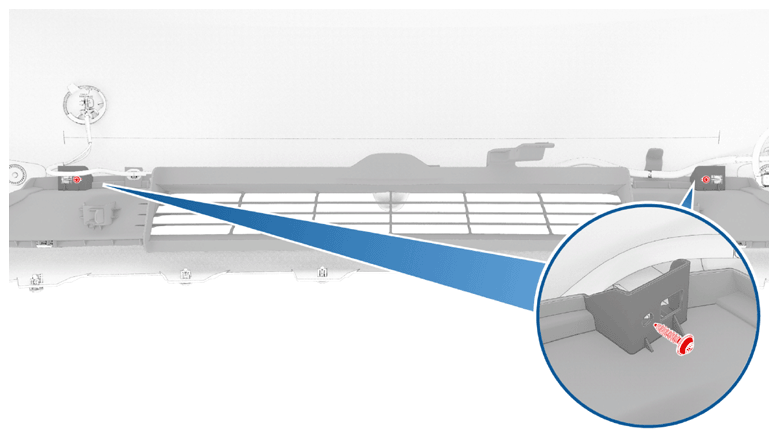

Install the bolts (x2) that attach the grille to the front fascia.
1.8 N.m (1.3 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- 4 in extension
- Cordless Ratchet/Impact Driver
- Ratchet/torque wrench (for installation only)
Courtesy of TESLA, INC.

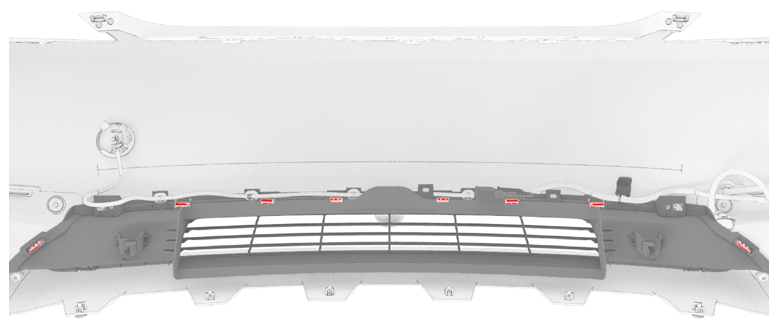

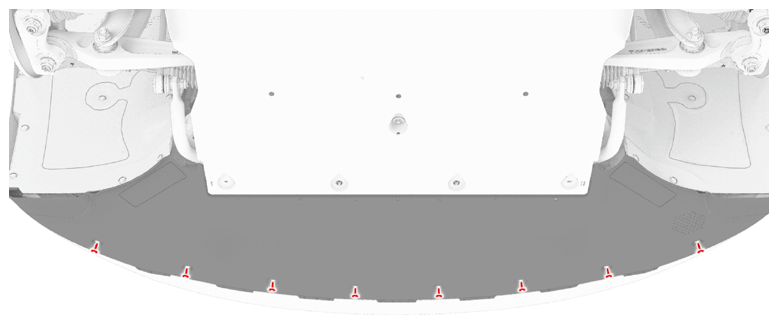

Install the valance to the front fascia, and install the bolts (x8) that attach the valance to the fascia.
3 N.m (2.2 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- Torx T40 socket
- 4 in extension
- Ratchet/torque wrench (for installation only)
Courtesy of TESLA, INC.

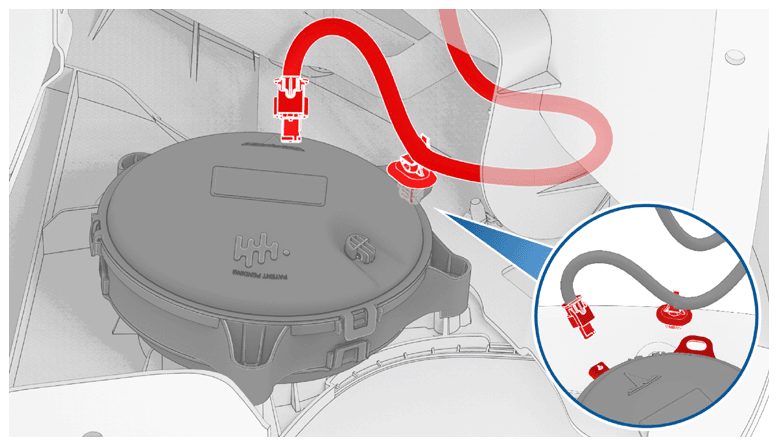

Connect the pedestrian warning connector, and then install the clip that attaches the pedestrian warning harness to the speaker.

Courtesy of TESLA, INC.

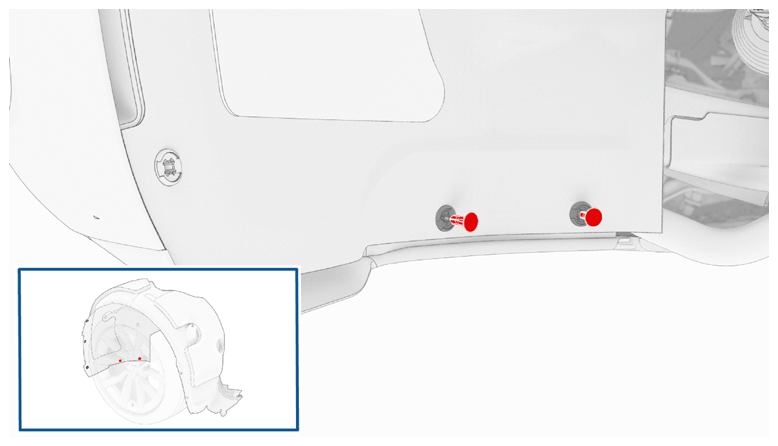

Install the nuts (x2) that attach the valance to the vehicle.
3 N.m (2.2 lbs-ft)

NOTE: The nuts are accessed from behind the front of the wheel liners.

Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm socket
- Ratchet/torque wrench (for installation only)
NOTE: LH shown, RH similar

Courtesy of TESLA, INC.

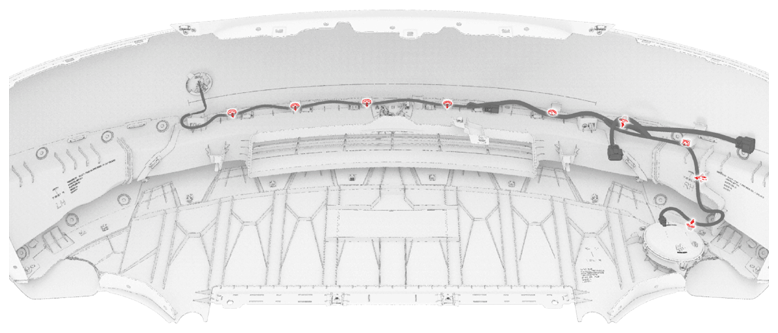

Install the clips (x9) that attach the front fascia harness to the front fascia.

Courtesy of TESLA, INC.

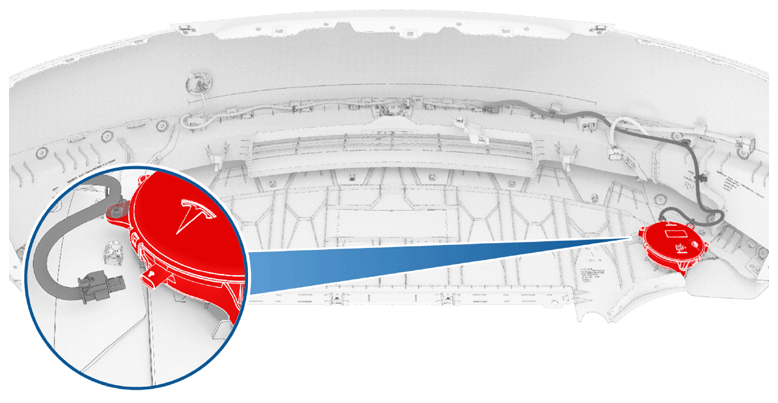

Connect the electrical connector to the pedestrian warning speaker.

Courtesy of TESLA, INC.

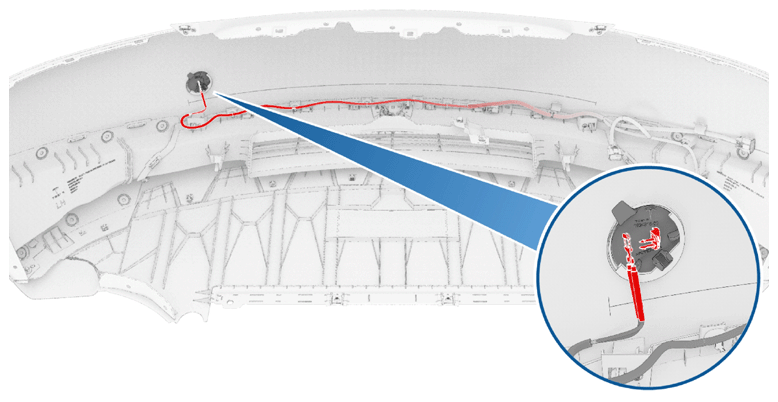

Install the clip that attaches the front fascia harness to the tow hook cover.

Courtesy of TESLA, INC.

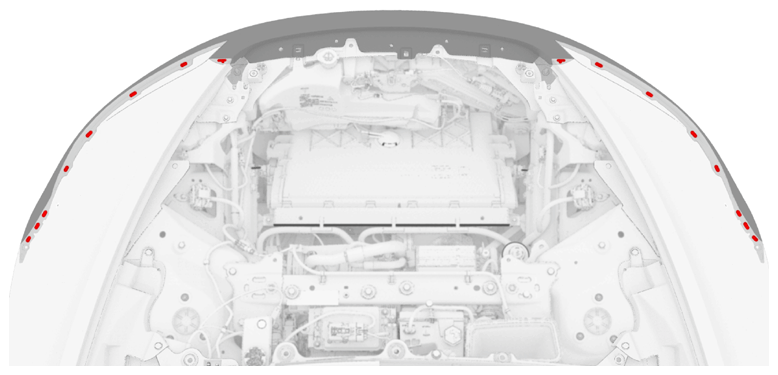

Fasten the clips (x16) that attach the front fascia assembly to the vehicle.
NOTE: LH shown, RH similar

Courtesy of TESLA, INC.
Apply a thin bead of Loctite 222 to the threads of the bolts (x4) that attach the valance to the front aero shield panel.
5 N.m (3.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm deep socket
- Torque wrench with angle measurement (for installation only)
Courtesy of TESLA, INC.

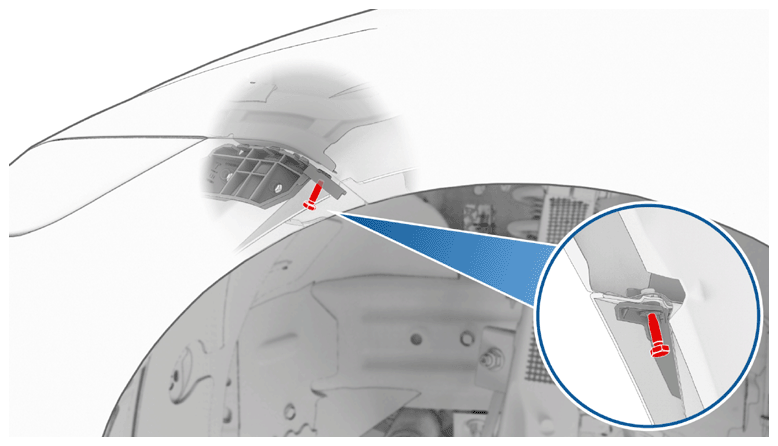

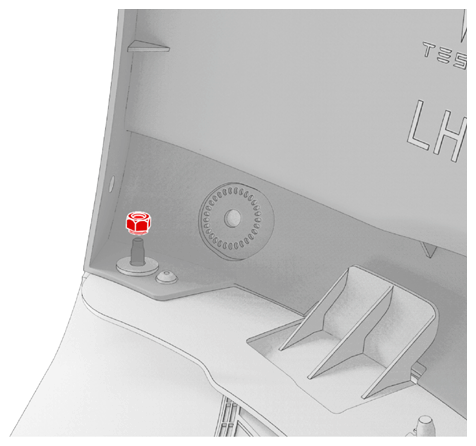

Install the bolt that attaches the front fascia to the LH front fender.
2.5 N.m (1.8 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Cordless hex driver
- 6 in nutsetter + 8 mm magnetic deep
- Torque wrench hexagon 1060071-00-A (for installation only)
Courtesy of TESLA, INC.

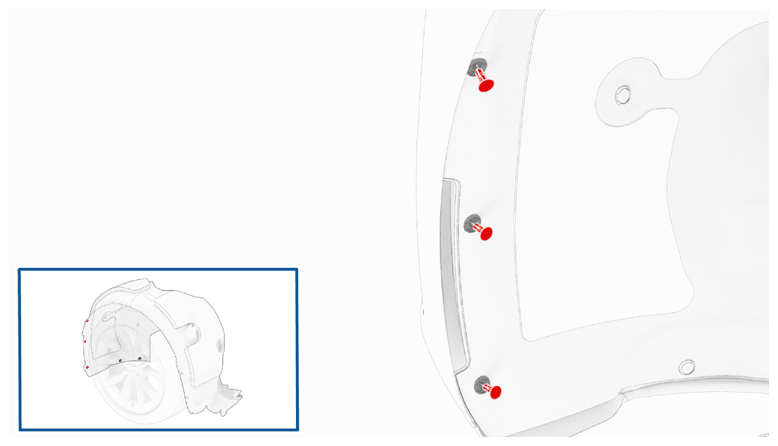

Fasten the clips (x5) that attach the LH front wheel arch liner to the front fascia, and then move the liner aside for access.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Repeat step 12 through step 13 on the RH side of the vehicle.

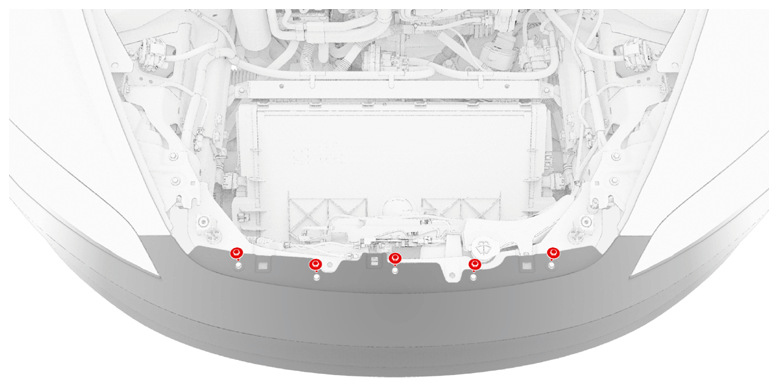

Install the bolts (x5) that attach the upper portion of the front fascia to the vehicle.
3.5 N.m (2.6 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Cordless hex driver
- 6 in nutsetter + 10 mm magnetic deep
- Torque wrench hexagon 1060071-00-A (for installation only)
Courtesy of TESLA, INC.
Install the underhood storage unit. See EXTERIOR FITTINGS - LUGGAGE COMPARTMENT TRIM - FRONT LUGGAGE STORAGE COMPARTMENT - FRUNK ASSEMBLY - REMOVE AND REPLACE .
