Wheel Arch Liners - Front Wheel Liner Assembly, LH - Remove And Replace: Install

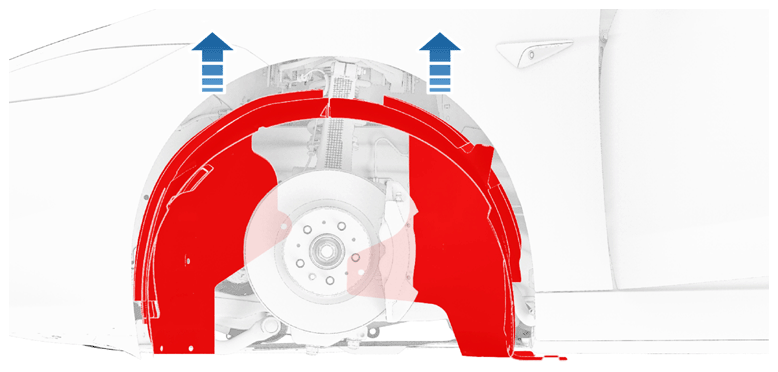

  1. Position the LH front wheel arch liner into the vehicle.
    G16588293Courtesy of TESLA, INC.

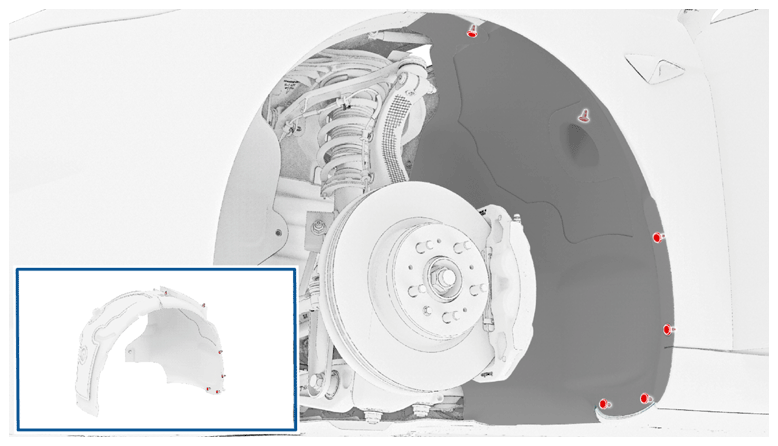

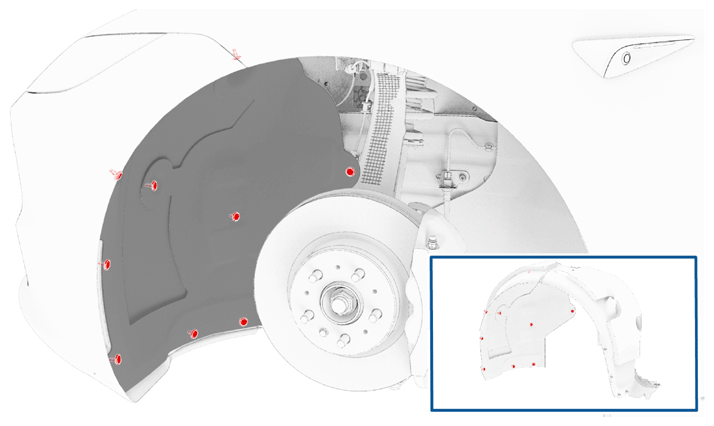

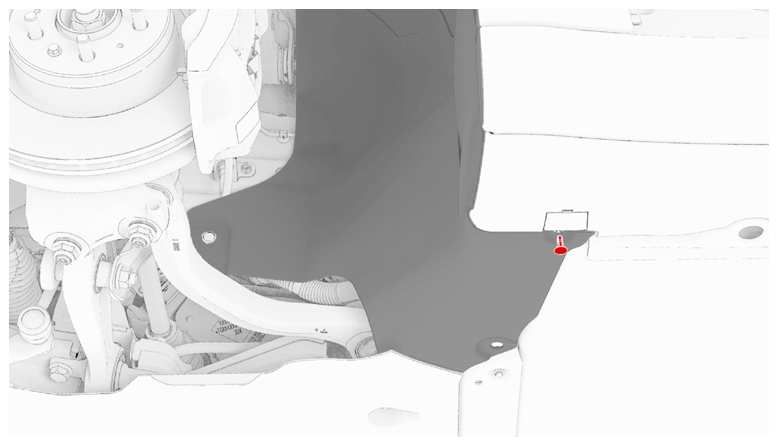

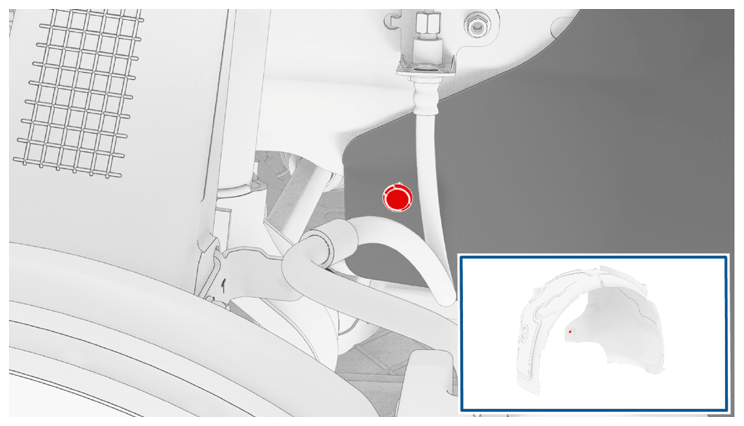

  2. Install the push clips (x17) that attach the LH front wheel arch liner to the vehicle.
    G16588294Courtesy of TESLA, INC.
    G16588295Courtesy of TESLA, INC.
    G16588296Courtesy of TESLA, INC.
    G16588297Courtesy of TESLA, INC.

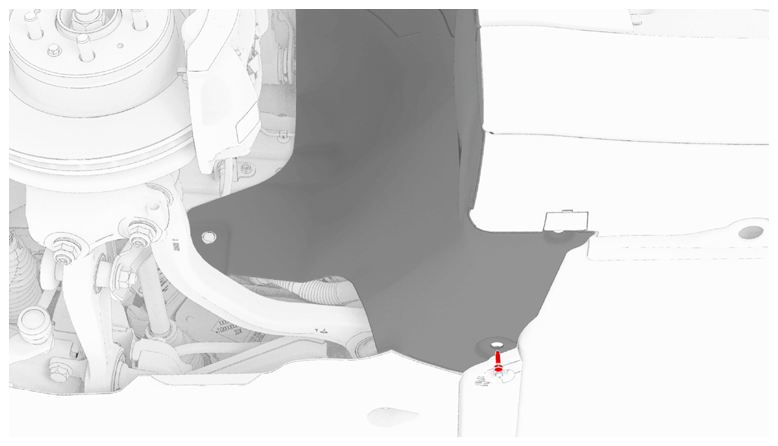

  3. Install the bolt that attaches the LH front wheel arch liner to the vehicle.

    5 N.m (3.7 lbs-ft)

    NOTE: Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 10 mm deep socket
    • Ratchet/torque wrench
    G16588298Courtesy of TESLA, INC.
  4. Install the LH front wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL .
