Exterior Trim Fittings - LHD - Assembly B-Pillar Applique LH - Remove And Replace: Notes

Last modified: 02/06/2024 20:26:02

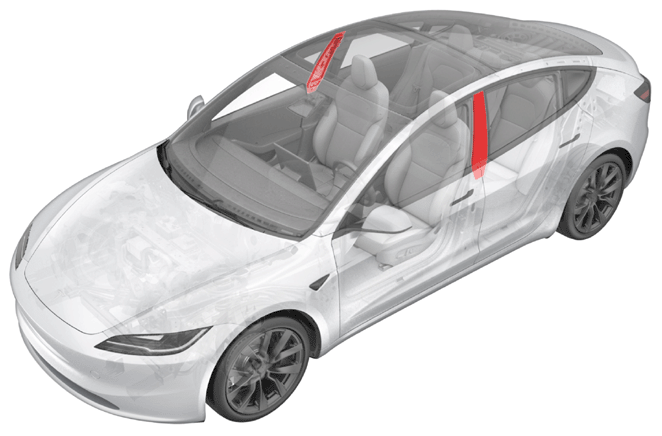

Fig 1: LH B Pillar Applique Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Revision History:

2024-05-28: Updated the routines per the latest validation.
2024-04-10: Updated the LH B-pillar applique images and added steps of removing/installing the clips that attach the applique seal to the body.

NOTE: Replacing the B-pillar applique also replaces the following components:

Driver side B-Pillar Applique - Replaces the LH side-view DAS camera, the external NFC key card reader, and the LH Bluetooth endpoint.
Front passenger side B-Pillar Applique - Replaces the RH side-view DAS camera and the RH Bluetooth endpoint.
