Front Bumper Fascia - Assembly, Access Panel - Remove And Replace: Install

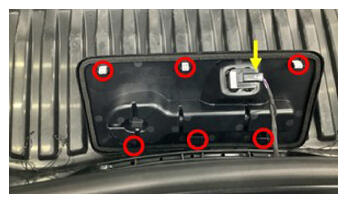

  1. Connect the electrical harness to the access panel.
    G16587293Courtesy of TESLA, INC.

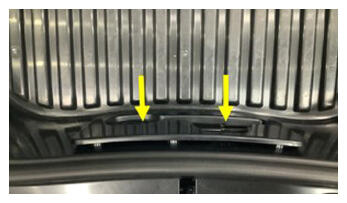

  2. Position the guide tabs (x3) into the grommets, and install the access panel into the underhood storage unit.
    G16587294Courtesy of TESLA, INC.
  3. Install the front tow hook. See FRONT BUMPER FASCIA - TOW HOOK - REMOVE AND REPLACE .
