Trunk Seals - Decklid Seal - Remove And Replace: Install

  1. Align the line on the trunk seal to the striker.
  2. Install the trunk seal to the perimeter of the trunk.

    Tip: Tap the trunk seal with a rubber hammer and use a plastic trim tool to fully install the trunk seal to the body.

    NOTE: Make sure the bottom of the seal is tucked into the rear fascia.

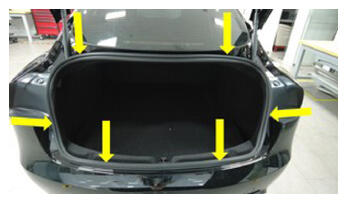

    G16588265Courtesy of TESLA, INC.
  3. Install the trunk sill trim. See A-B-C POST INTERIOR TRIM - TRUNK SILL - REMOVE AND REPLACE .
