Front Door Seals, Seal, Front, Door, Secondary, LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Release the clips (x2) that attach the rear of the LH front door inner belt seal to the LH front door.
    G16588241Courtesy of TESLA, INC.
  3. Release the clip that attaches the LH front door glass run seal to the LH front door.
    G16588242Courtesy of TESLA, INC.

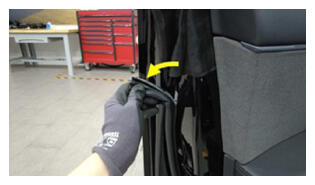

  4. Slowly peel the length of the secondary seal from the perimeter of the LH front door.
    NOTE: Discard the seal as it can not be reused.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16588244Courtesy of TESLA, INC.
  5. Clean any remaining adhesive or residue from the LH front door.
    G16588245Courtesy of TESLA, INC.
