Front Door Seals, Seal, Front, Door, Secondary, LH - Remove And Replace: Install

Ensure the area where the secondary seal will be installed is clean.

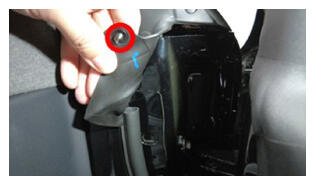

Peel a short section of the seal backing on each end of the seal and position the ends into the door assembly.
NOTE: Make sure that the open edge of the seal is facing the inside of the door.

NOTE: Make sure the front edge of the seal is under the cutout for the glass run seal, and the rear edge is under the cutout for the inner belt seal.

NOTE: Make sure that the drain holes of the seal are at the bottom of the door.

Courtesy of TESLA, INC.

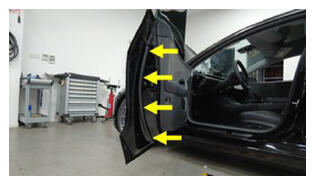

Firmly press the remaining portion of the seal into place while removing the film from the double sided tape.
NOTE: Make sure that the seal is evenly distributed around the perimeter of the door.

NOTE: Do not stretch the seal as it is applied to the door.

Courtesy of TESLA, INC.

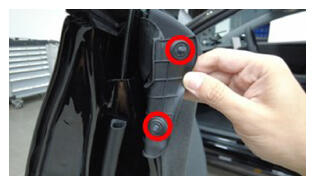

Install the clips (x2) that attach the rear of the LH front door inner belt seal to the LH front door.

Courtesy of TESLA, INC.

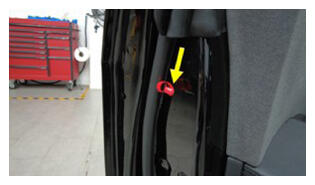

Install the clip that attaches the LH front door glass run seal to the LH front door.

Courtesy of TESLA, INC.
Raise the LH front window and close the LH front door.
