Body Side Seals - Primary Seal, Front Door, LH - Remove And Replace: Remove

  1. Remove the LH B-pillar applique. See EXTERIOR TRIM FITTINGS - LHD - ASSEMBLY B-PILLAR APPLIQUE LH - REMOVE AND REPLACE .

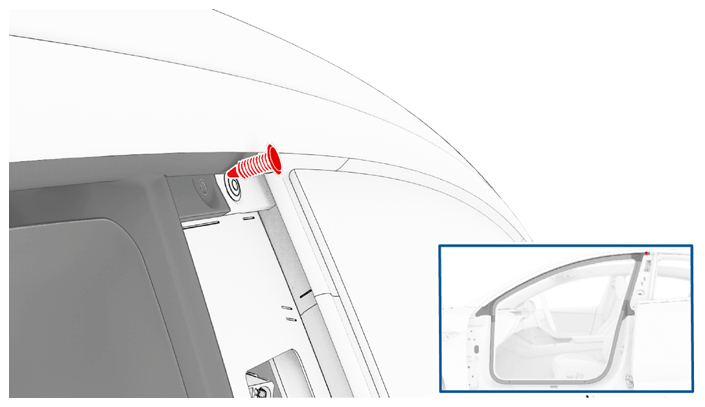

  2. Release the clip that attaches the LH primary front side body seal to the upper B-pillar.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    G16588217Courtesy of TESLA, INC.

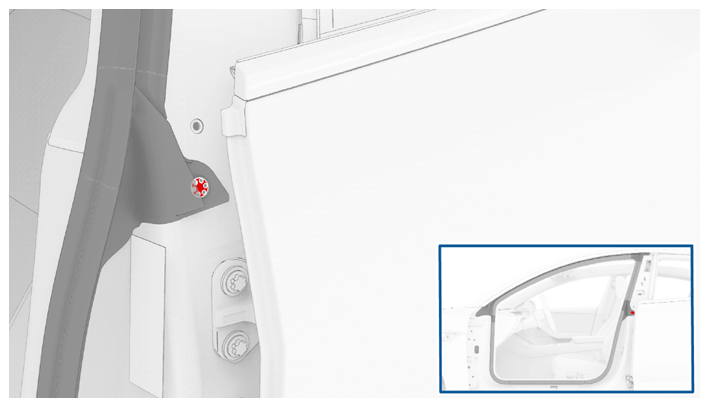

  3. Release the clip that attaches the LH primary front side body seal to the mid B-pillar.
    G16588218Courtesy of TESLA, INC.

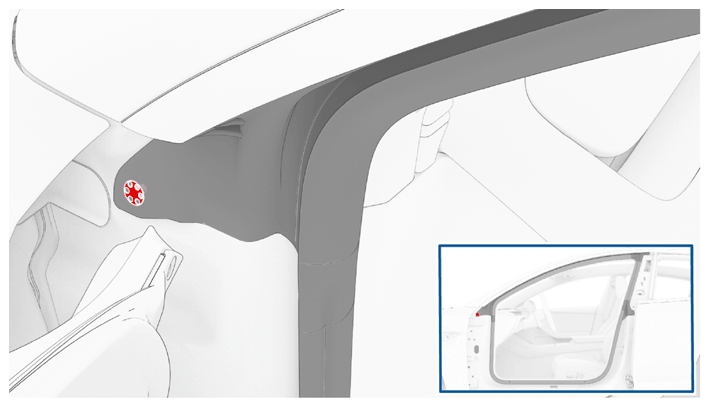

  4. Release the clip that attaches the LH primary front side body seal to the A-pillar.
    G16588219Courtesy of TESLA, INC.

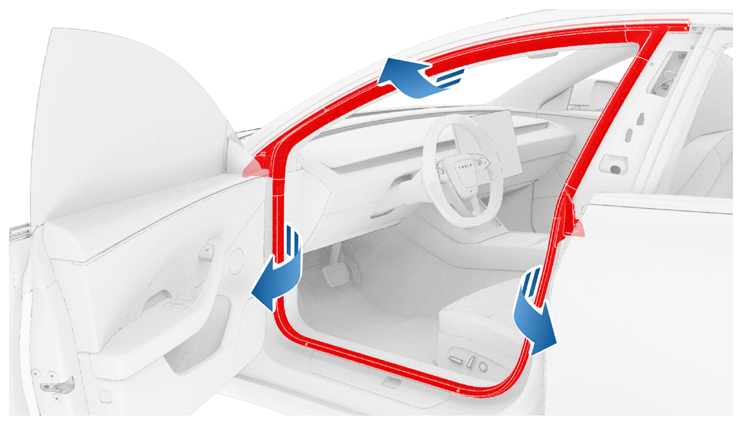

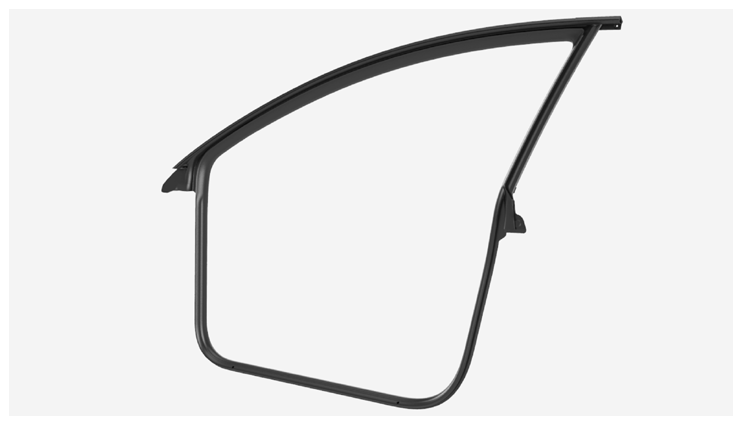

  5. Pull on the LH primary front side body seal to remove it from the vehicle.
    G16588220Courtesy of TESLA, INC.
    G16588221Courtesy of TESLA, INC.
